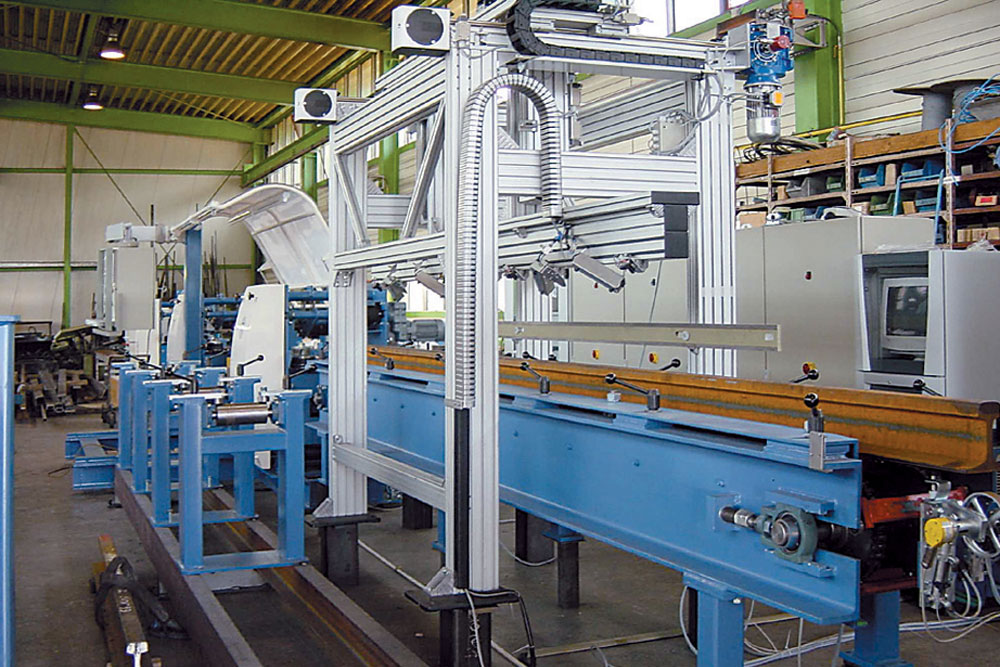

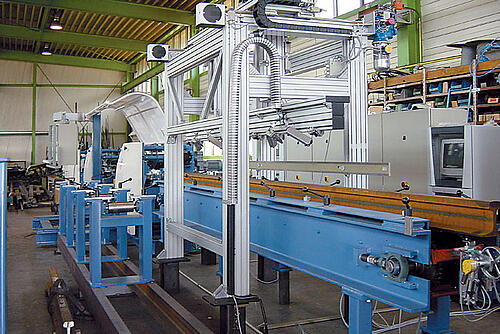

FM Flatness Measurement Unit

back

Flatness measurement is a contact-less optical measuring method for measuring the flatness of profiles allowing faster and more precise quality checks.

Horizontal and vertical flatness are calculated, thus electronically simulating the manual measurement process.

Your advantages:

Simultaneous horizontal and vertical Flatness Measurement through laser cut system
Tested products are able to move freely in lateral direction inside measuring field
Flatness Measurement is ensued from start to end of profile
High measurement accuracy
Automatic adjustment at product change
