Drilling Machine FW

back

The four axis drilling machine FW is specially designed to perform all necessary drilling operations on common aluminum wheels with high precision and short cycle times.

FW machines are available in different configurations, which allow covering the majority of the production requirements in the market. The lower size, machine model FW-22, is suitable for the machining of wheels up to Ø22", and the bigger size, machine FW-24, allows to drill wheels up to Ø24".

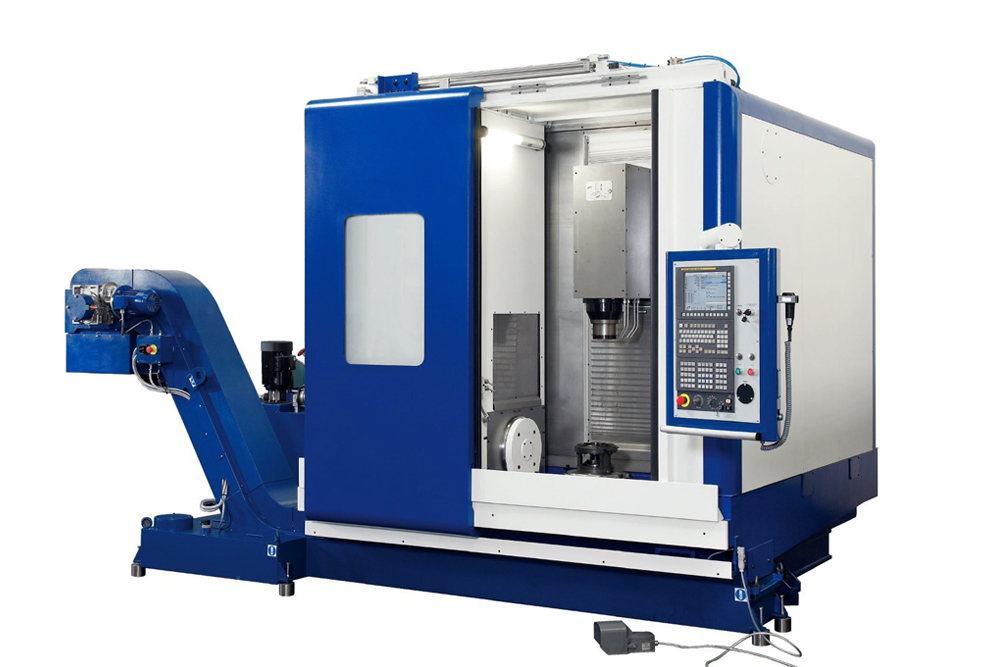

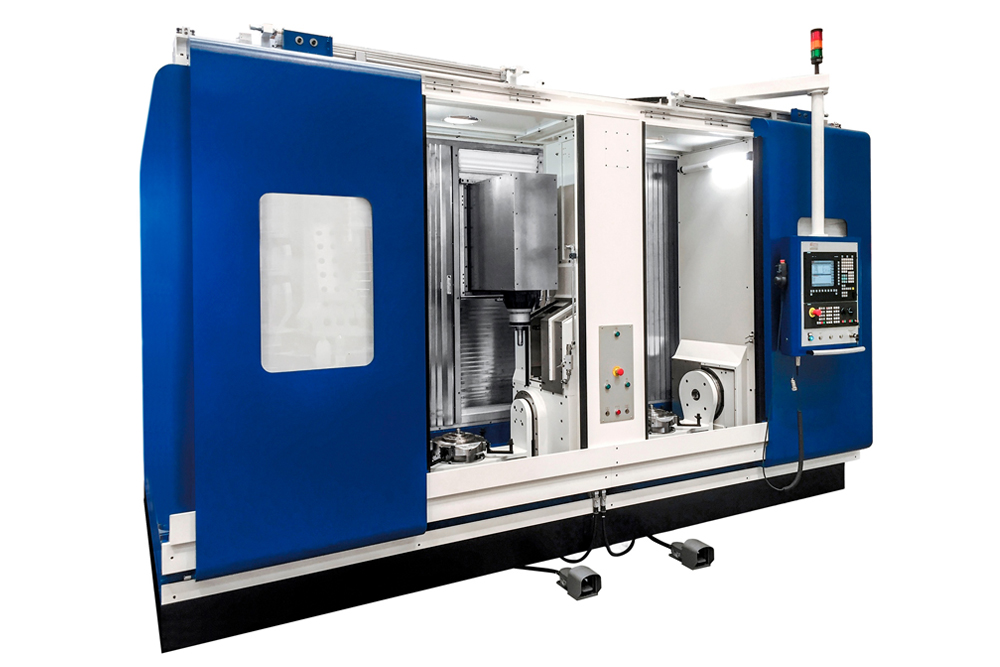

The slim version FW-24-T for limited space is equipped with only one working station. The dual station version FW-24-D reduces the loading/unloading time due to the possibility that the drilling head will be moved from the first to the second station. The fourth axis is designed with a torque motor in order to grant fast, strong and precise positioning of the inclined table that improves the quality of the machined wheel.

Typical features:

Drilling of the bolt holes and valve hole
Counter boring of the bolt holes
Spot facing of the valve hole
Drilling of track holes

The tool magazine is able to handle twelve tools and can be expanded to up to thirty tools.

Your advantages:

High spindle power guarantees short cycle times

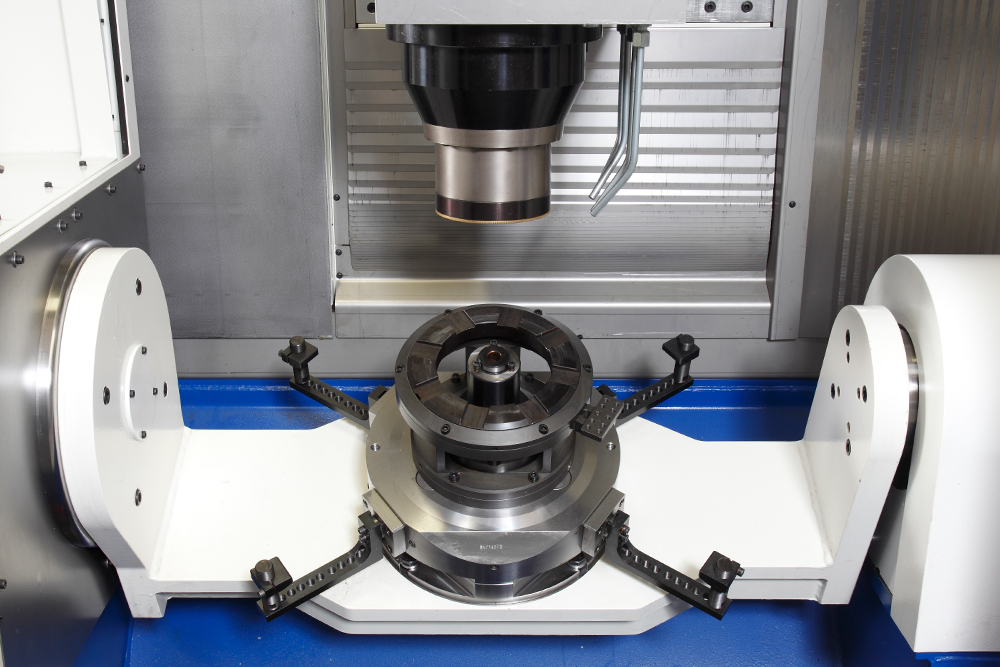

Torque motor at tilting table (fourth axis) for strong and precise tool positioning
Special machine design for aluminum wheels
