Workholding OP3 | CS323 - Automatic Jaw Chuck | clamping system with changeable jaws

back

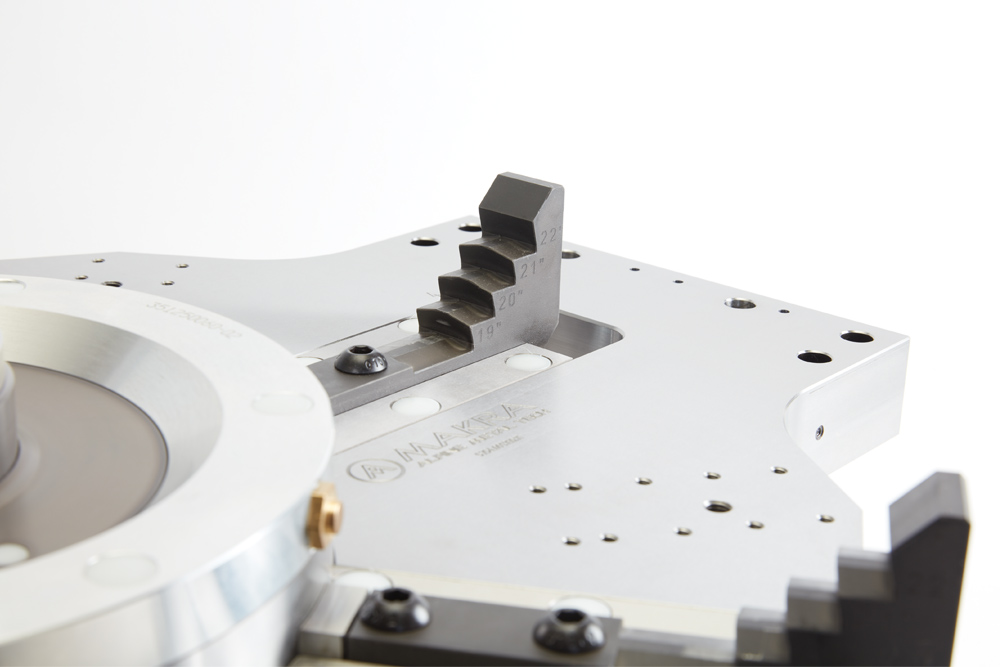

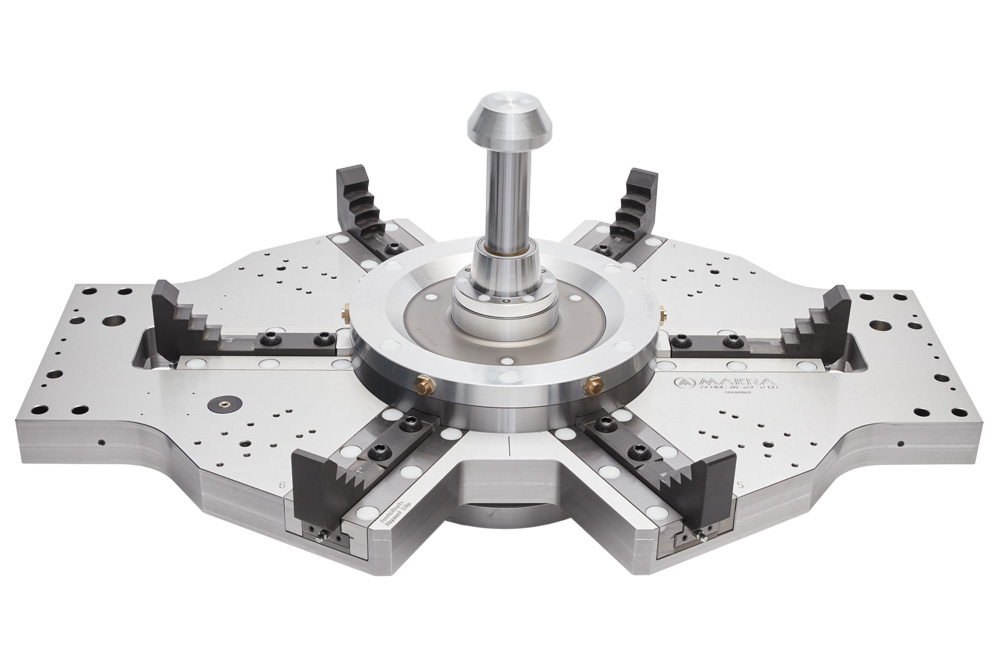

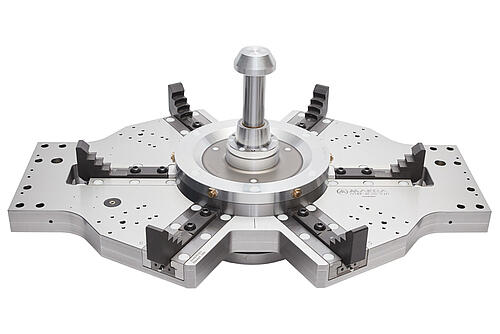

This clamping bridge was developed for clamping aluminum wheels during the 3rd operation. The replaceable clamping jaws enable random machining of wheels up to four different sizes without adjustment.

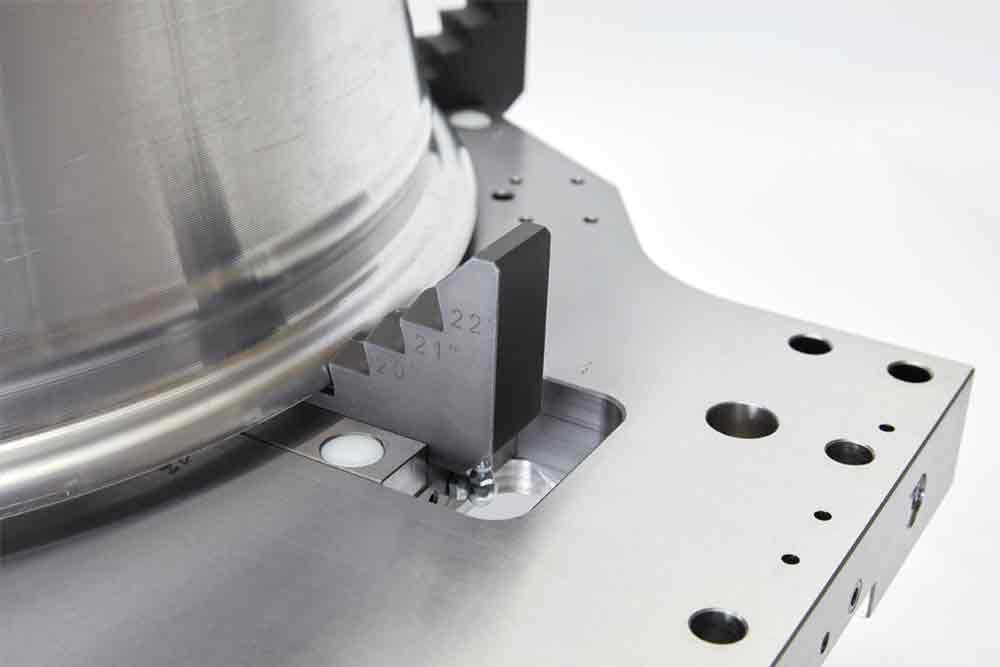

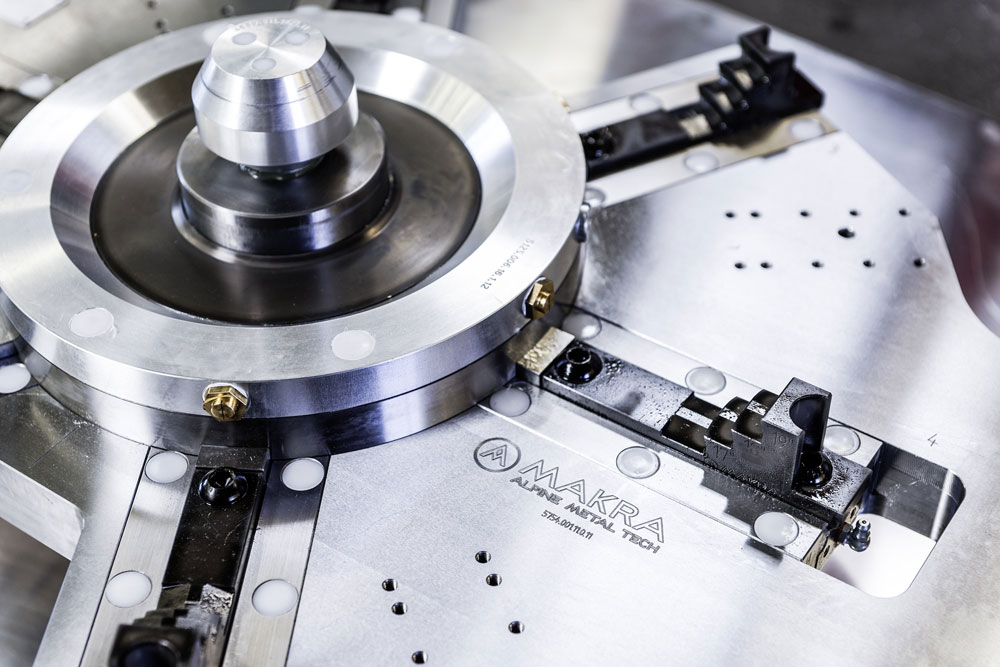

The wheel is clamped from the outside on the rear flange where it has already been machined, so smallest tolerance deviation can be achieved. Due to the flat design, swiveling to the valve hole is possible. The support cylinder for the center bore prevents vibrations during operation and secures best machining results.
