Workholding OP2 | CS223 - Automatic Jaw Chuck | clamping system with changeable jaws

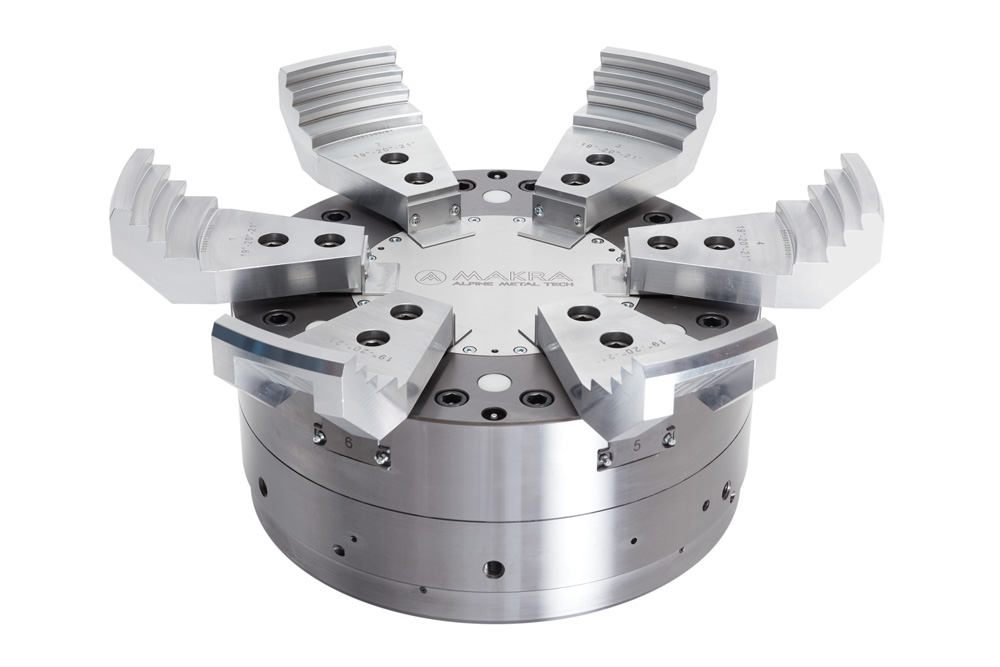

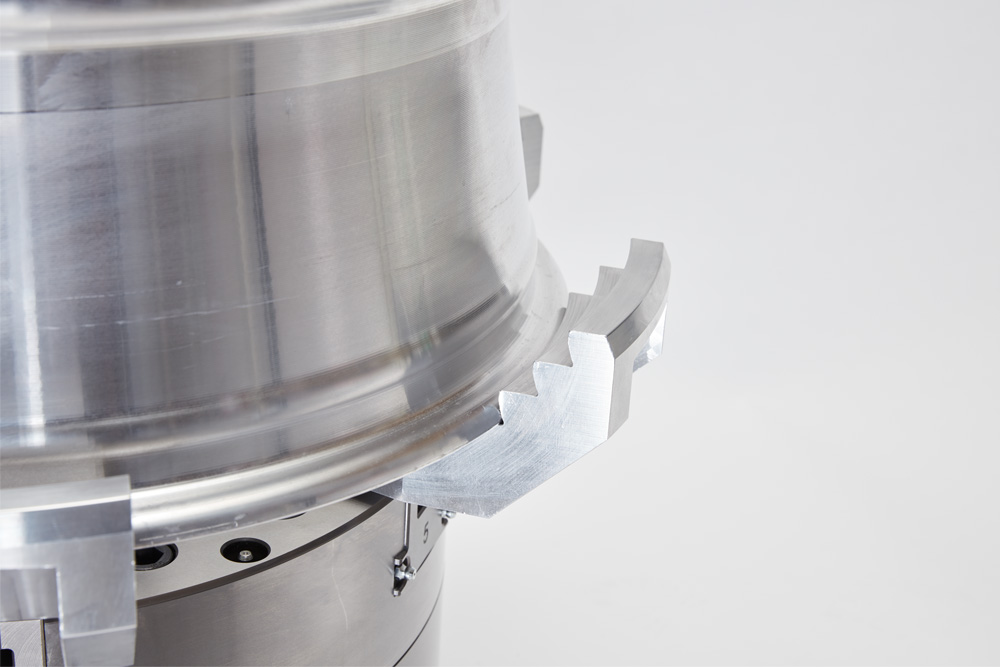

The 6-jaw chuck allows random machining for the 2nd operation (final lathe operation). To do so, the wheel is clamped on the rear flange from the outside. Due to the excellent properties, the automatic chuck is also suitable for diamond cut machining of aluminum wheels.

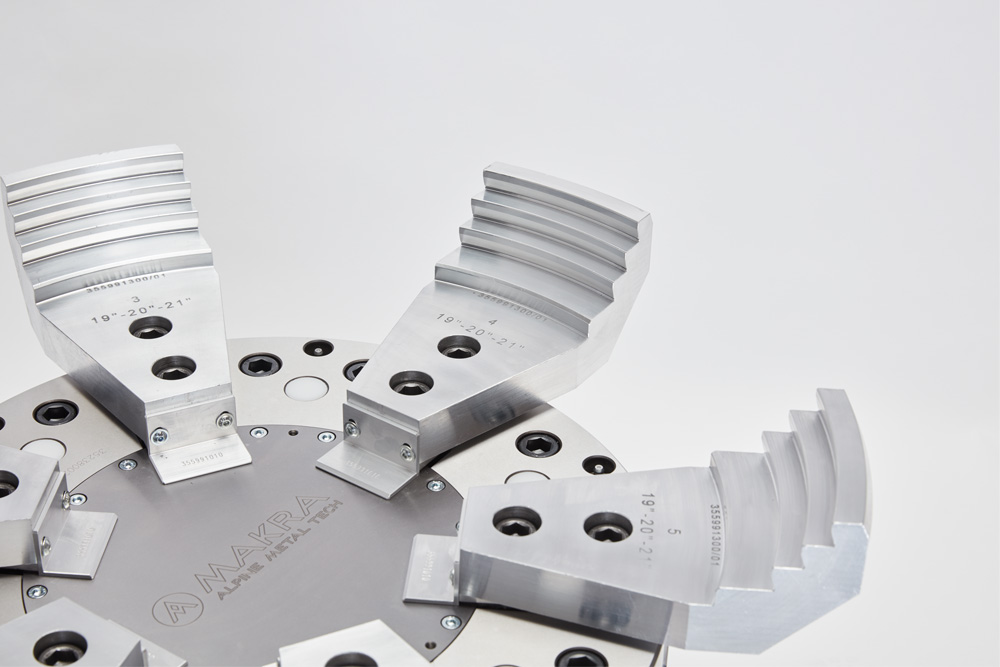

The centrifugal force compensation prevents a loss of clamping force; therefore, the processing of the wheels can be done faster and with higher precision. The low-weight jaws are available for up to five wheel sizes per set and enable perfect concentricity and axial runout.
Your advantages:
- Up to eight times higher rigidity for large diameter wheels
- Centrifugal force compensation enables fast machining speed
- Constant clamping force
- Low wheel deformation
- Clamping jaws changeable without demounting of the chuck
- Useable for lathes with and without pallet changing table
