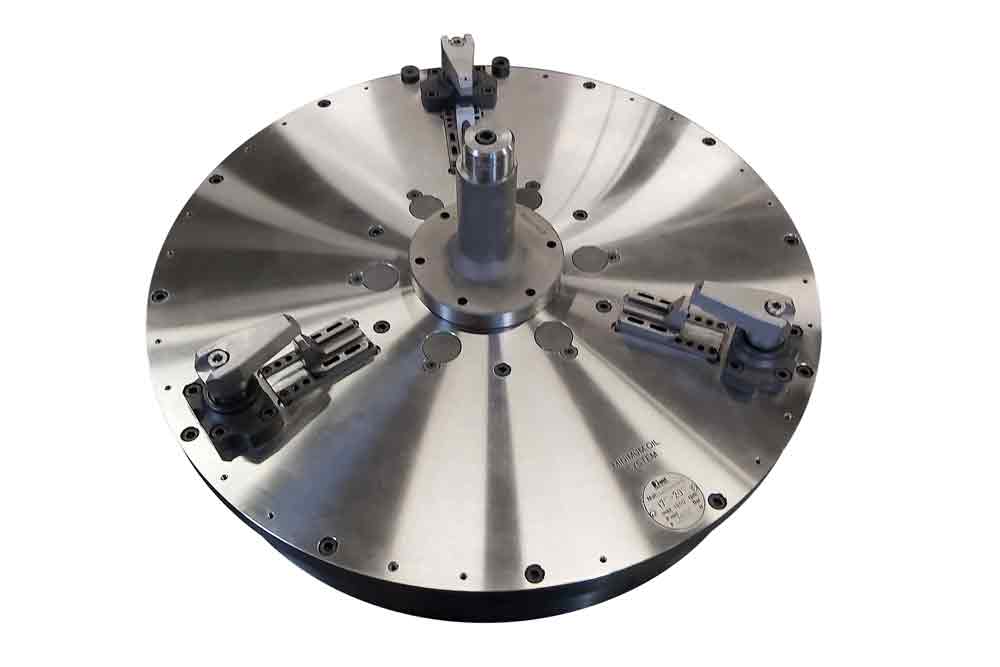

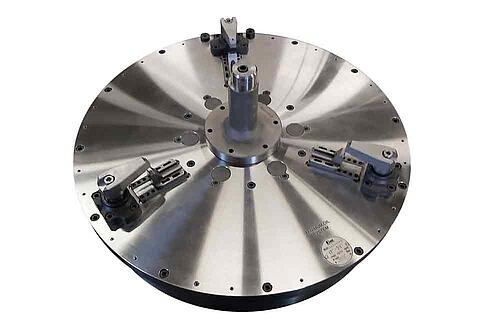

Workholding OP2 | CS211 - Modular Finger Chuck | manually adjustable clamping device

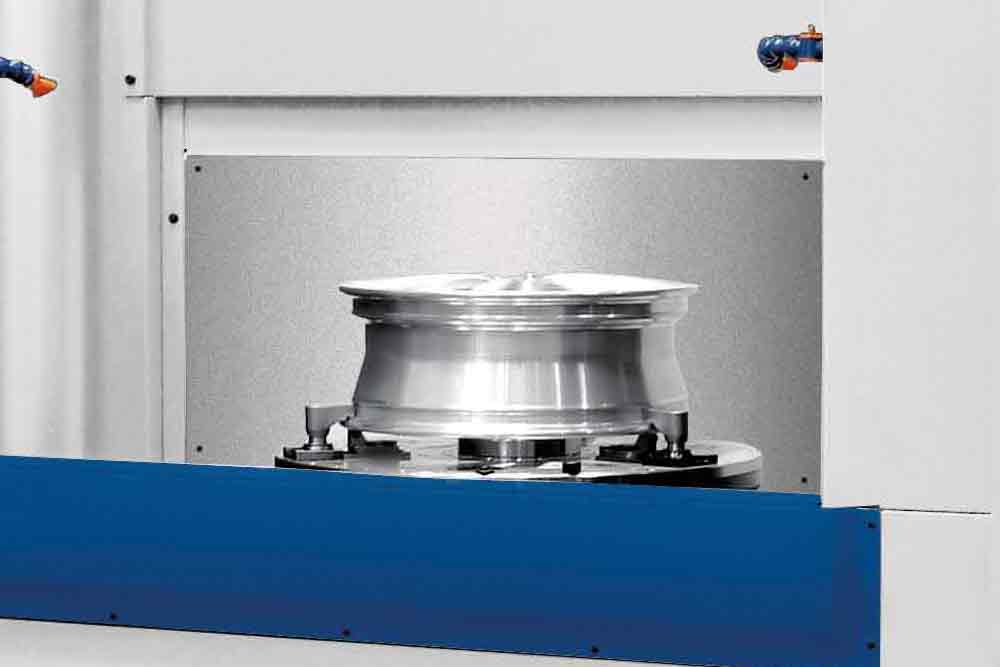

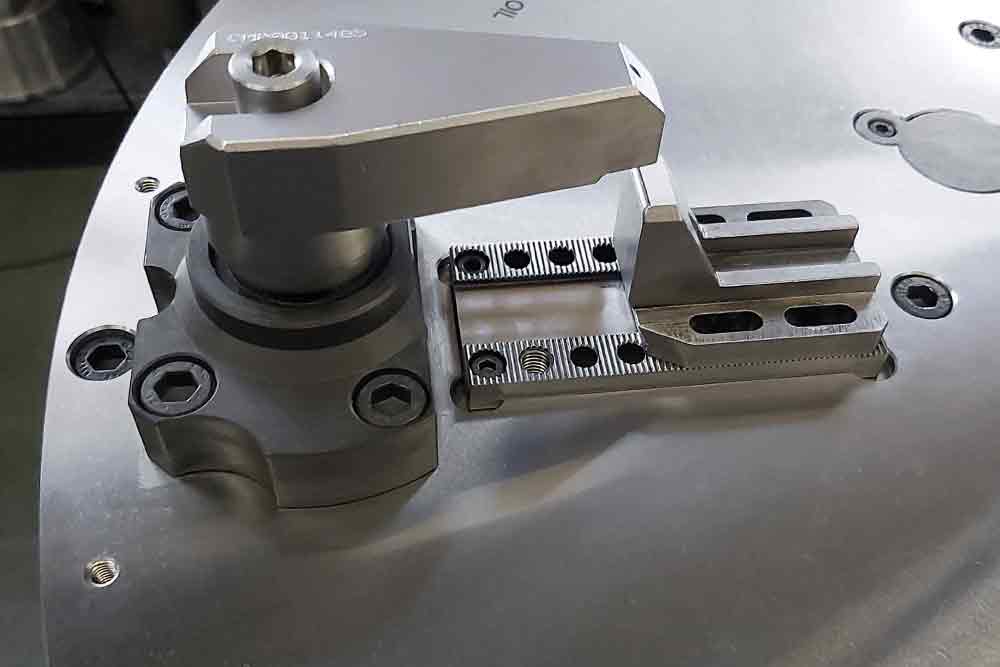

The CS211 modular finger chuck was developed for high precise wheel machining at the 2nd operation. Due to centering the wheel at the very accurate center hole, a maximum overall wheel quality after machining can be achieved. Fixation of the wheel is realized by swiveling fingers.
The clamping system is capable for four different wheel sizes by retooling the wheel support and the clamping fingers. In order to clamp wheels with different center bore diameters, the centering unit can easily be exchanged.
Your advantages:
- For large-scale production of the same wheel size
- Highest precision due to centering at the center bore
- Four possible wheel sizes with same body
- High rigidity
- Self-centering
- Changeable centering unit for bore diameter adjustment
