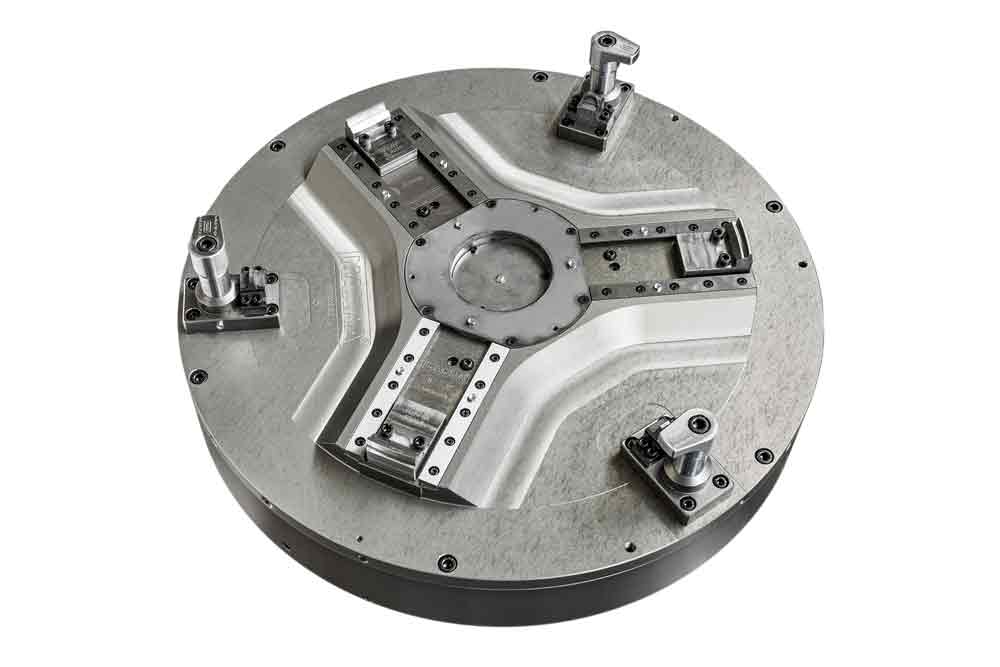

Workholding OP1 | CS112 - Modular Plate Chuck | manually adjustable clamping device

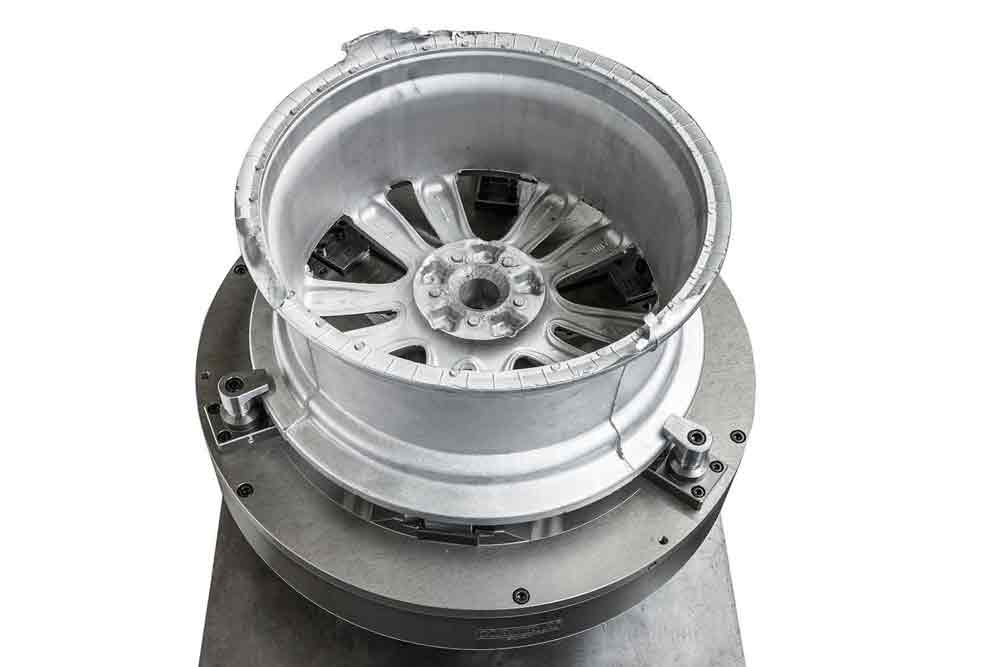

The modular plate chuck is a clamping solution for the highest machining quality of wheels in terms of concentricity and unbalance. The centering is possible on the inside or outside of the outer flange.
Since only one diameter is clamped per change set, the tolerances are in the minimum range. The change sets are preset per diameter, therefore the changeover process can be done fast.
Your advantages:
- High accuracy at high speeds and large wheel sizes
- Constant chucking force
- Self-centering

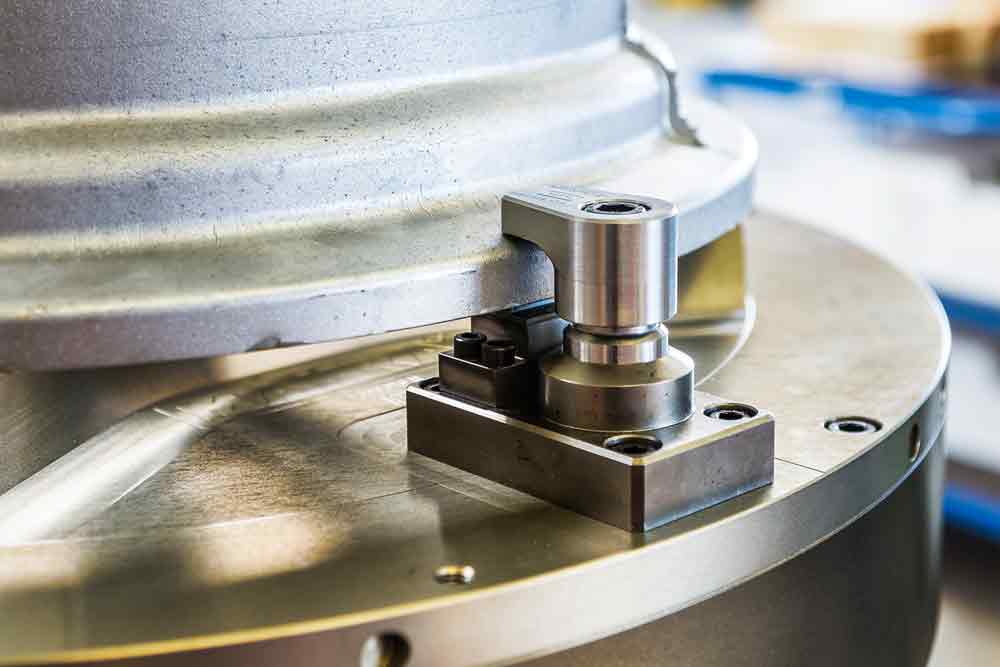

- Customized chucking fingers and resting pad
- Secured loading and removal position of the wheel
