Workholding OP1 | CS111 - Modular Finger Chuck | manually adjustable clamping device

back

The CS111 modular finger chuck is the ideal choice for large-scale production. The design of the Ergal body represents the perfect compromise between strength and weight with the possibility to reach high-revolution speed.

The clamping system is capable to clamp four different wheel dimensions with the same body by only changing the clamping fingers and adjusting the wheel support and the centering unit. This modification can be realized from inside or outside the outboard flange. With a limited set of clamping devices, it is possible to cover the complete production range.

Your advantages:

  • High-precision self-centering
  • For large-scale production of the same wheel size
  • High rigidity

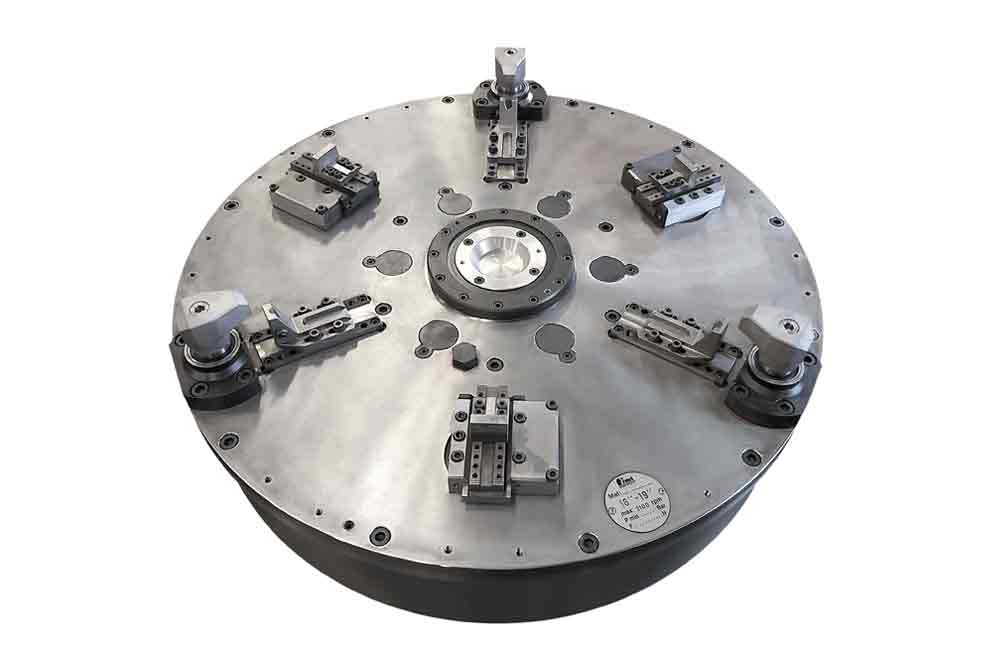

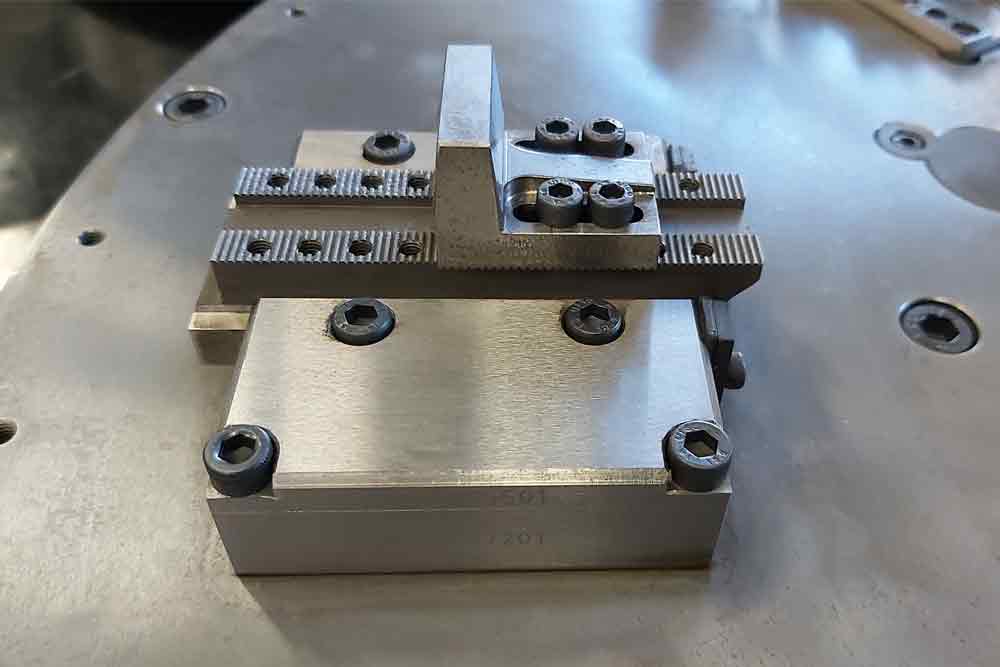

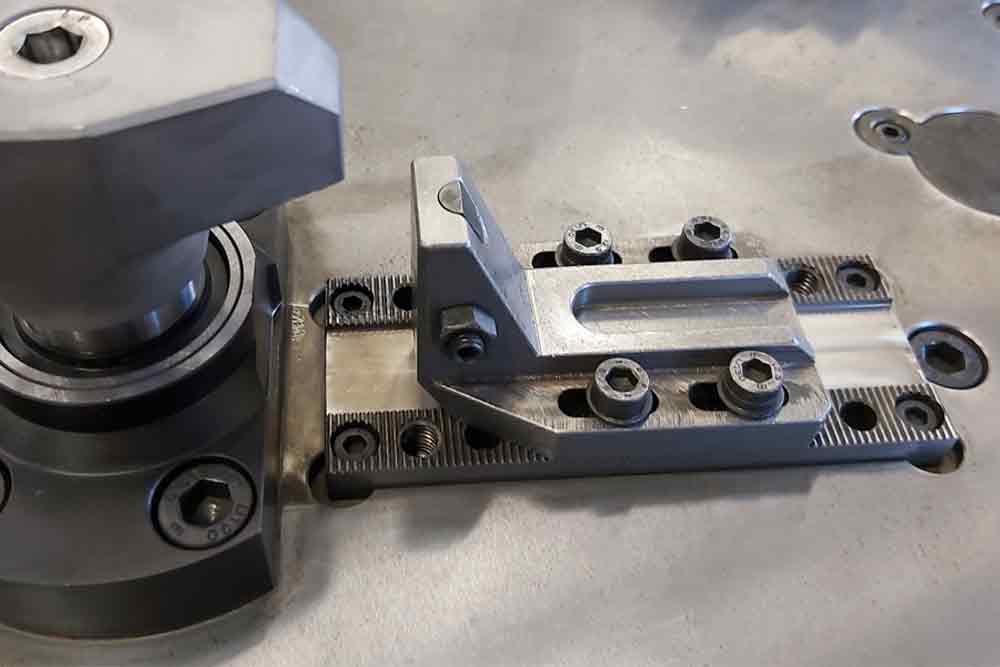

INTERMATO Workholding OP1 CS111 Modular Finger Chuck – manually adjustable clamping deviceINTERMATO Workholding OP1 CS111 Modular Finger Chuck – clamping finger and wheel supportINTERMATO Workholding OP1 CS111 Modular Finger Chuck – centering unitINTERMATO Workholding OP1 CS111 Modular Finger Chuck – manually adjustable clamping device
