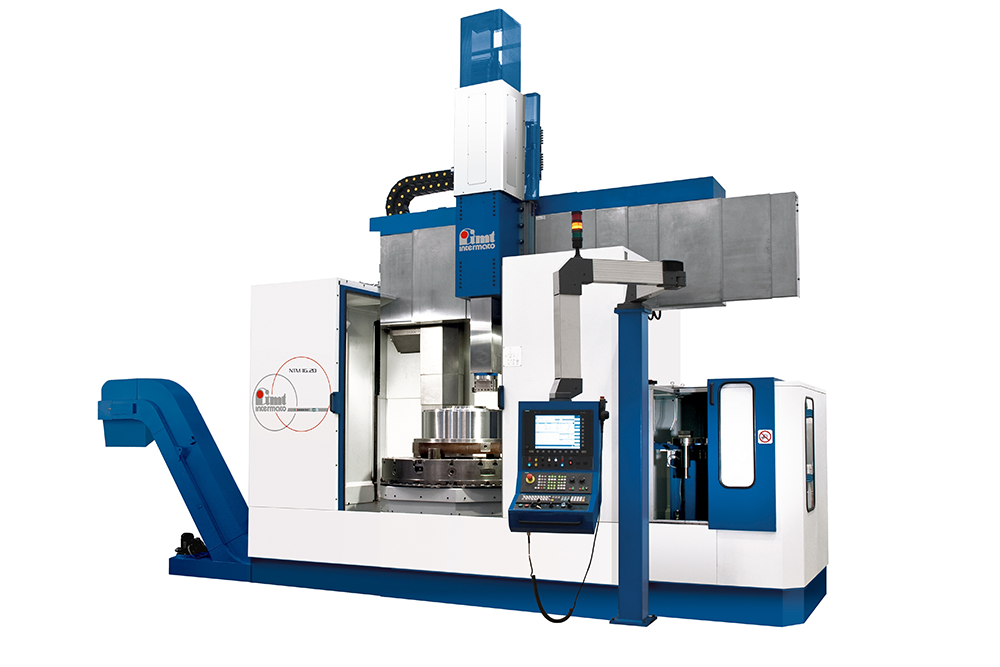

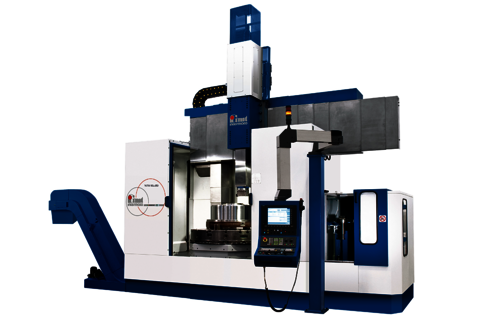

Vertical CNC Lathe NTM

back

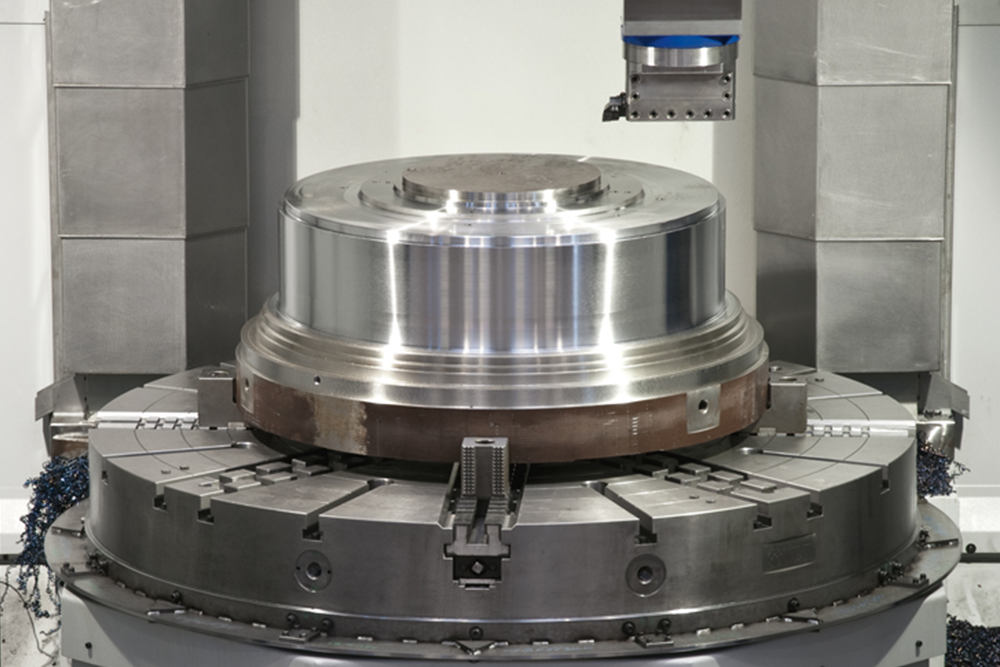

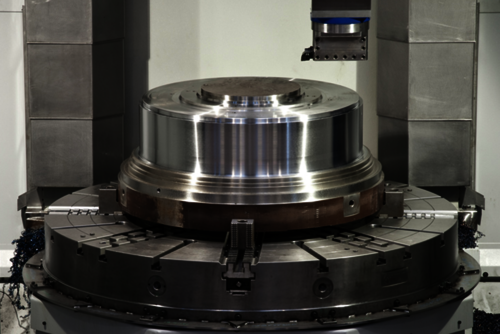

In the sector of medium vertical lathes, the NTM series is a mono-column lathe with a capacity up to 7 meters with a mobile cross-rail and hydrostatic movements.

The NTM and VTM series can be adapted to customer-specific needs with numerous configurations and accessories, e.g. pallet exchanging systems, tool magazines, double ram, versions for milling operation, grinding operation as well as angular heads. The turning capacity of the models ranges from a diameter of 1,800 mm to 7,000 mm with a maximum workpiece height of 5,000 mm. The movable cross-rail machine is characterized by its wide range of applications, including energy, aerospace, iron and steel, oil and general mechanics.

Your advantages:

Extensively sized machine structure for extreme rigidity, accuracy and excellent quality of machining
Important loads allowed on the tables starting from 15 to 120 tons
Reduction of maintenance costs and excellent thermo-control of the machine due to machine axes with hydrostatic movement
The machines version with 4 working axes is able to halve the cycle time
