Vertical CNC Lathe JW

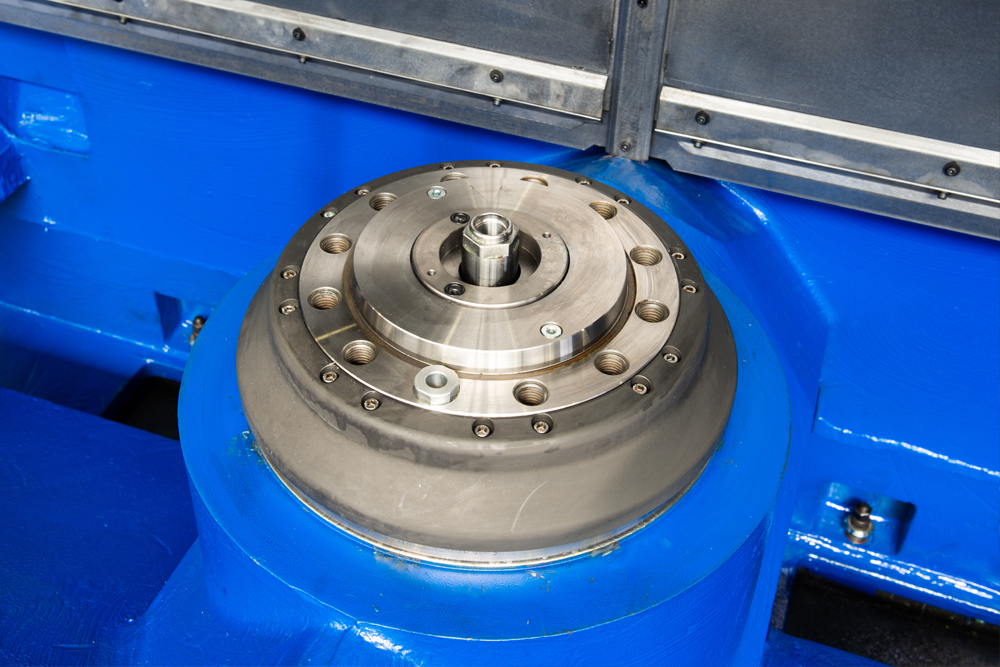

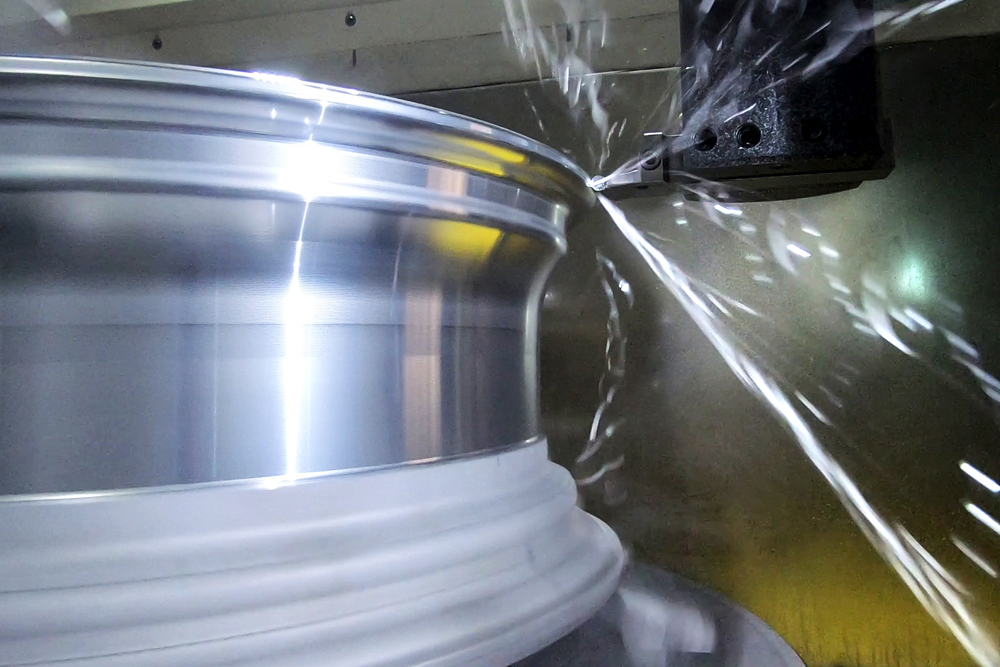

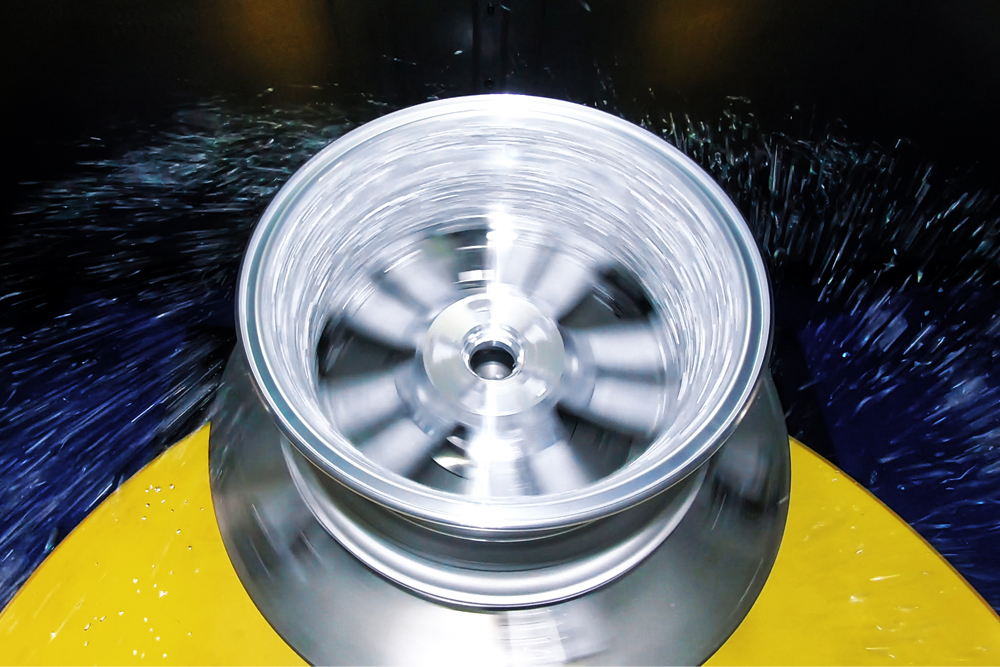

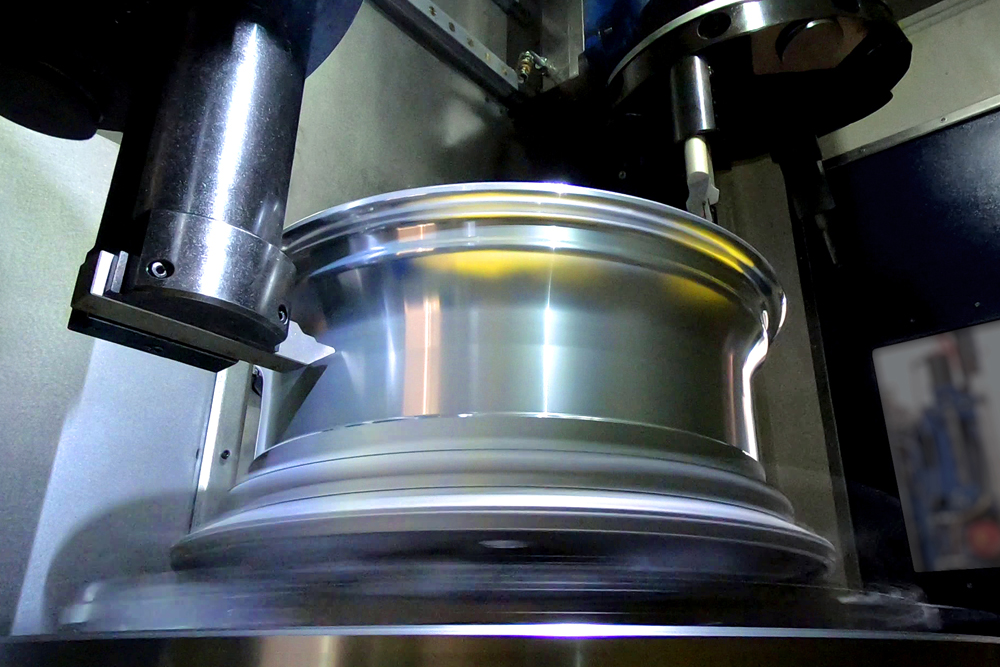

This machine series is capable to handle aluminum wheels up to 24" x 13" with perfect dimensional accuracy and surface quality. The spindle is driven by a belt with a maximum motor power of 75 kW in S6. The JW series is the ideal choice to be integrated in fully automatic and random wheel machining lines, although the single machines can also be used in manual mode. Within the JW series all common machine versions are covered to have the right machine available for each production.

JW-T4:

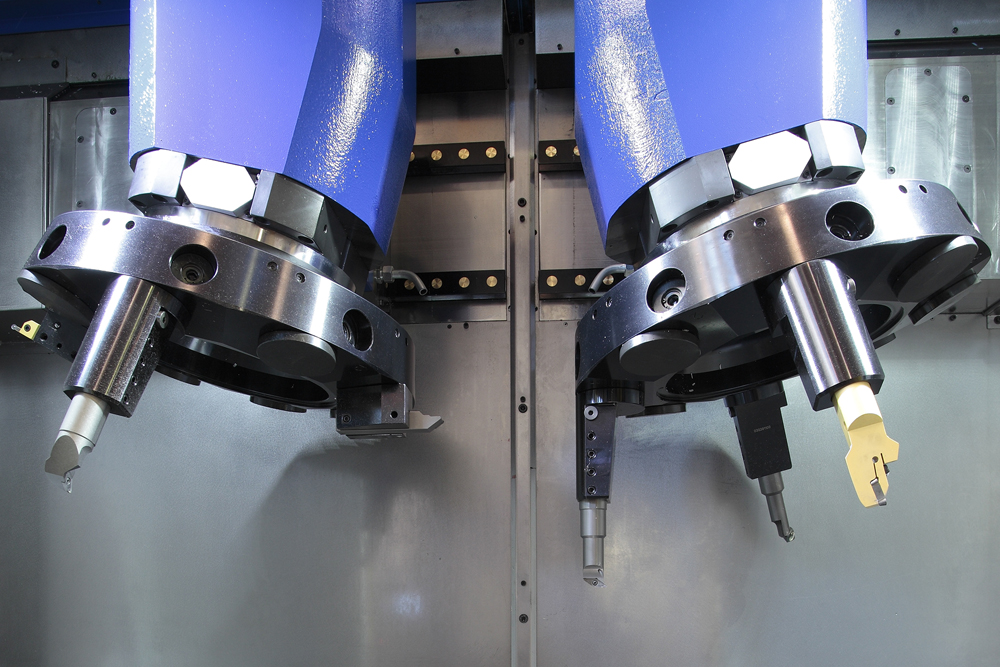

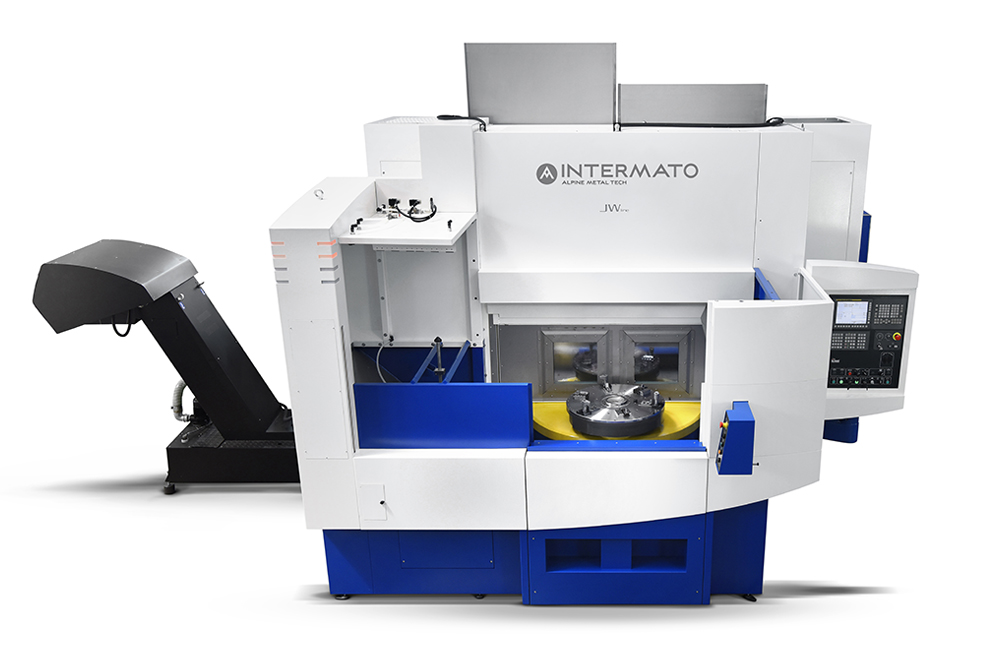

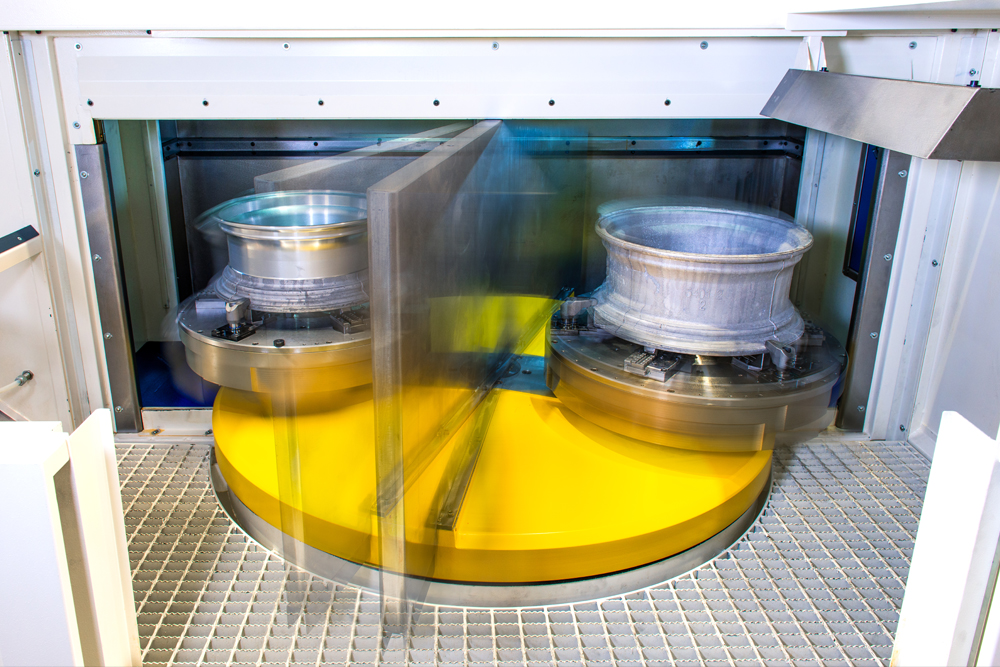

Machine version with two turrets and four axes, included pallet change table; mainly used for first wheel machining operation.

JW-T4sp:

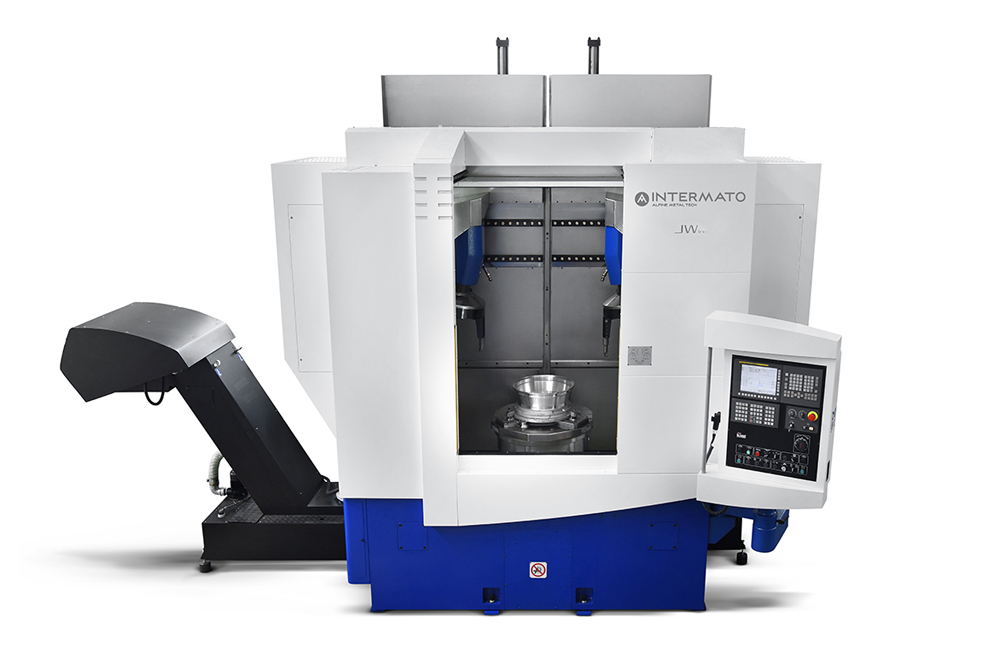

Similar to JW-T4 but without pallet change table; mainly used for first and second operation to reduce cycle time for special wheel designs, e.g. pre-machining of wheel design for diamond cut.

JW-T2:

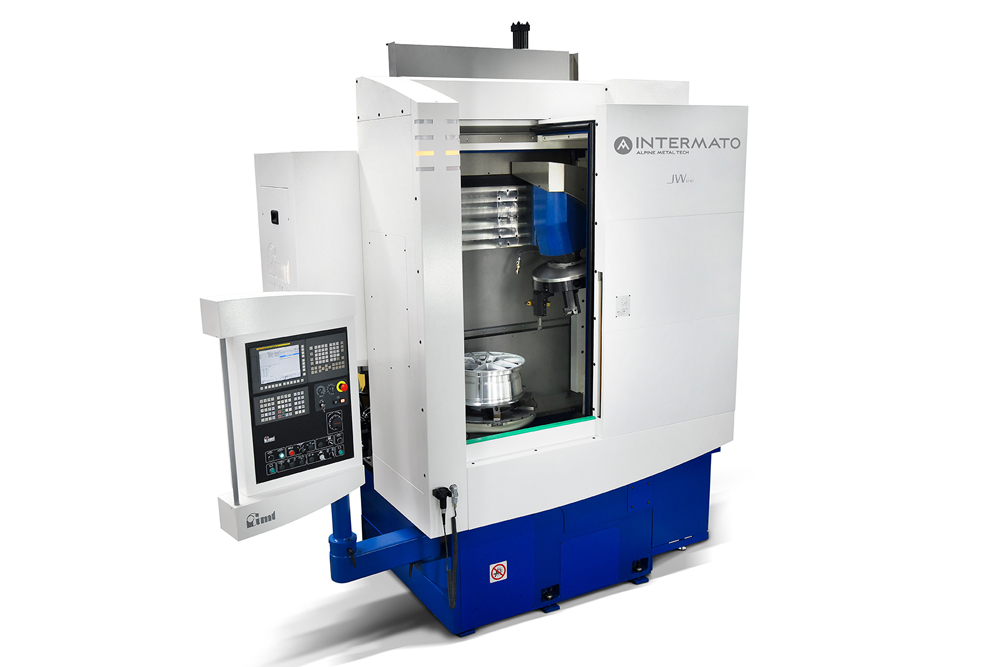

Machine version with one turret and two axes, without pallet change table; mainly used for second wheel machining operation.

Your advantages:

• Lateral and backwards chips conveyor available for layout optimization
• Easy maintenance
• Compact design of the machine
• Increase of machining quality due to optimized machine frame
• Reduction of cycle time due to high-power spindle drive
