Horizontal CNC Lathe SRE 130 WST

back

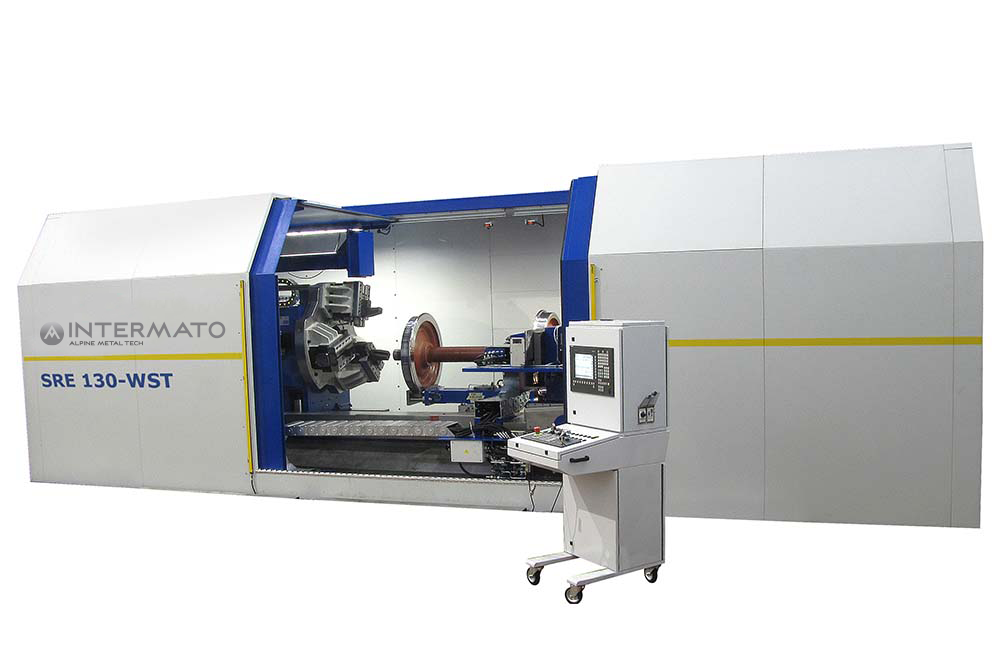

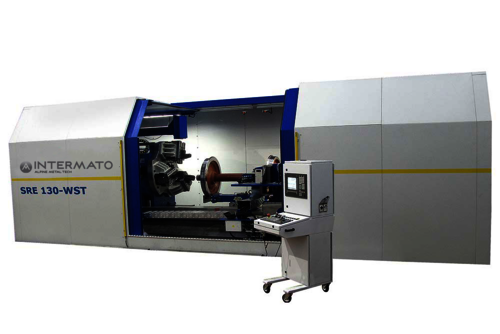

SRE-130-WST is a floor mounted reliable horizontal wheel lathe for the machining operations required on wheelsets disassembled from their bogies.

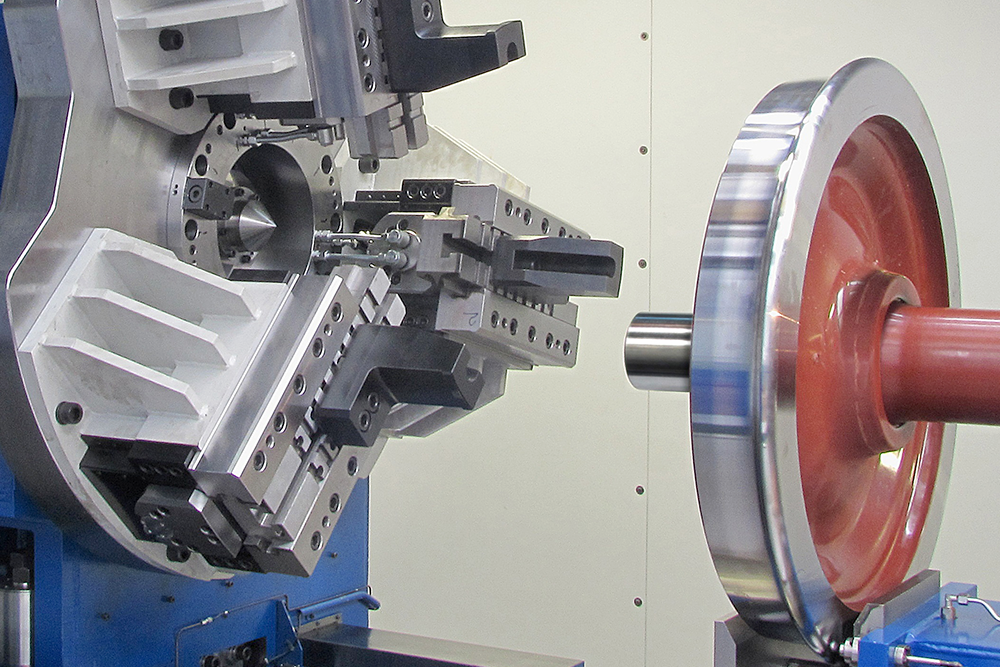

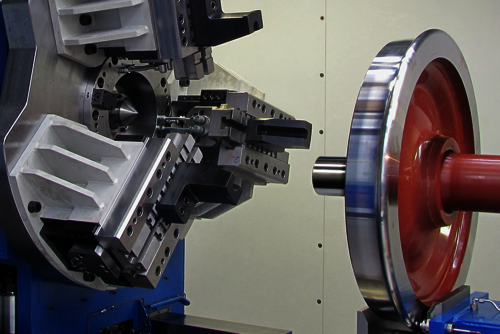

The reprofiling turning operation can be performed for solid wheel or tired wheel treads of worn or new railway and metro wheelsets. The machine can be equipped with double head stoke and two carriages for the simultaneous machining of two wheels. A special automatic lifting system is available to perform the loading and unloading of the wheelset in automatic cycle. The chuck system is realized with floating jaws and has been specially designed to avoid any marks of the wheels.

Turning of new and worn tires
Turning of worn wheels
Internal and external facing of tires
Disc brakes facing
Removing of rings
Cutting of grooves
Machining of rims
Complete turning of axles

All the operations of the lathe are fully controlled by CNC with automatic pre-loaded cycle.

Your advantages:

Pre & Post measurement of profiles and diameters
Electronic wear measurement system in order to determine the economical depth of cut
Automatic or Manual possibility to load the wheel-set
Package of options such as, tool pre-setting, touch probe for dimensional measurement of the piece in the machine, system for tool integrity control, auto retraction of the tools at power failure
