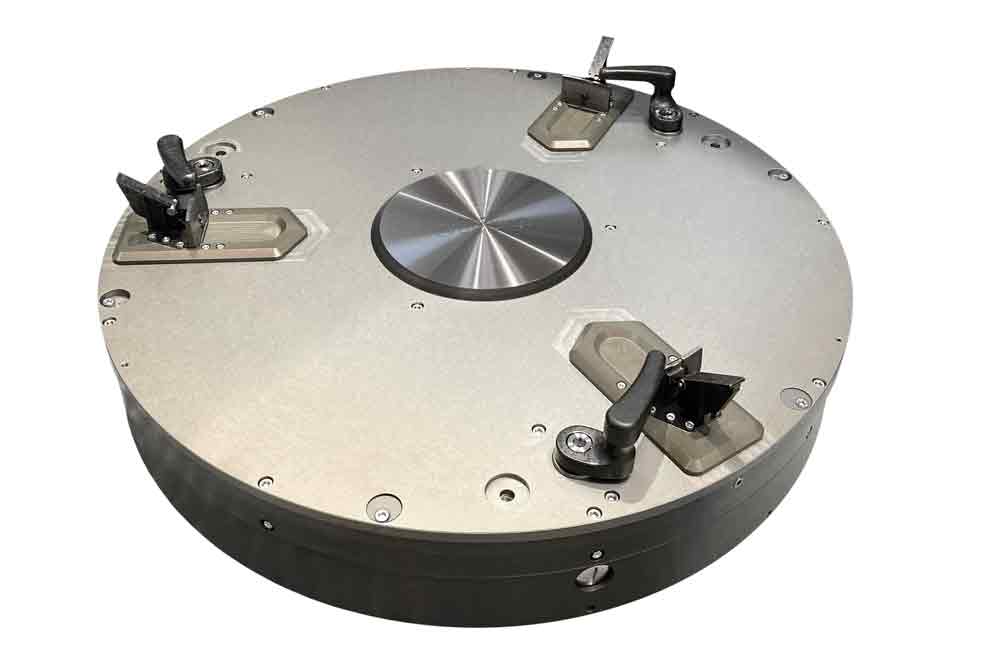

Workholding OP1 | UCS-4 - Automatic clamping system for 4 wheel sizes

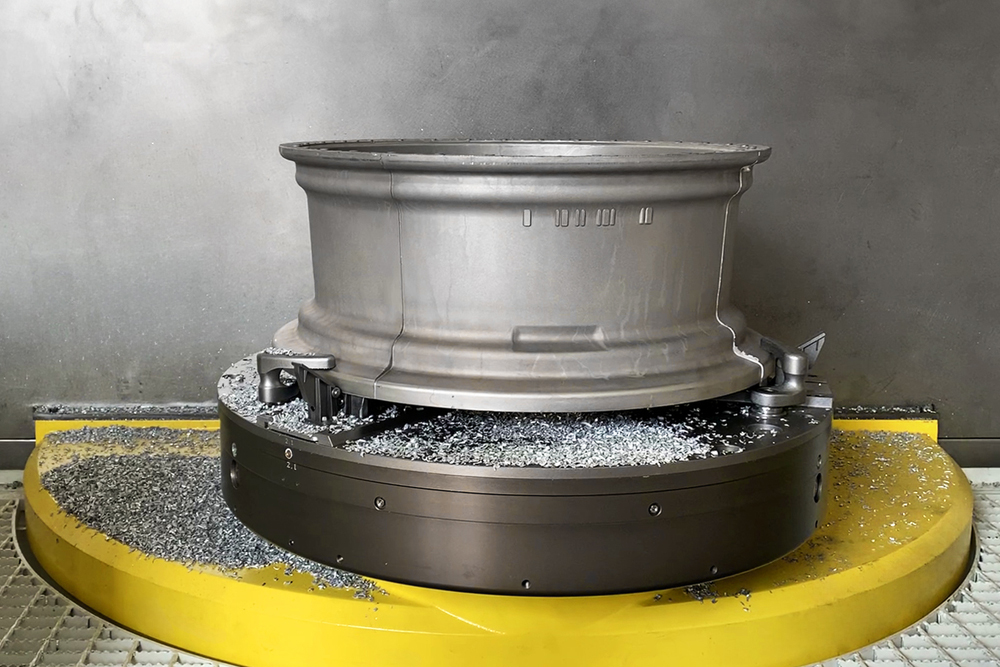

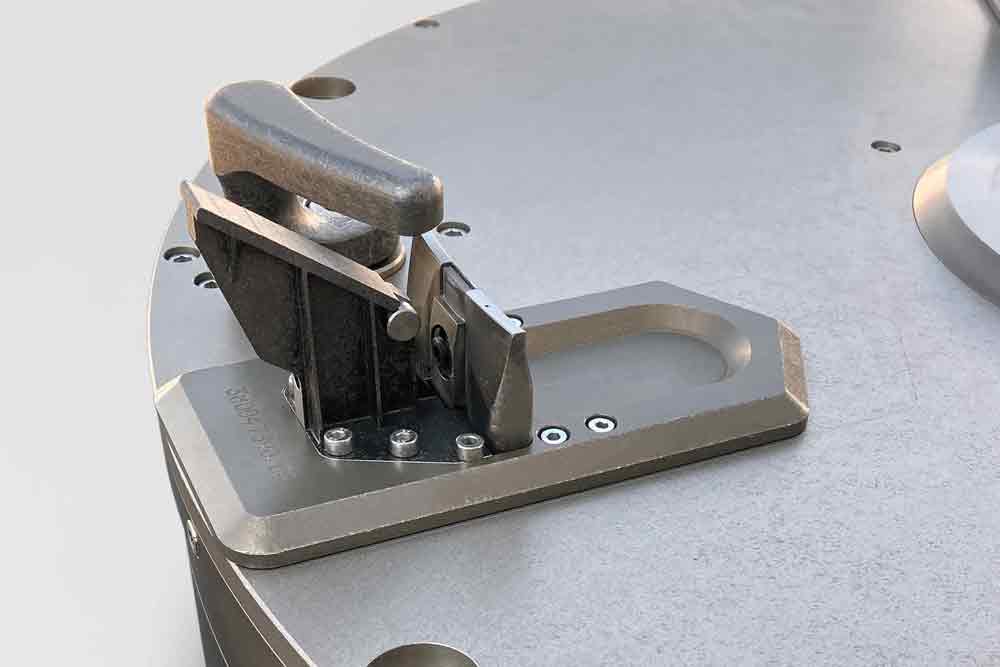

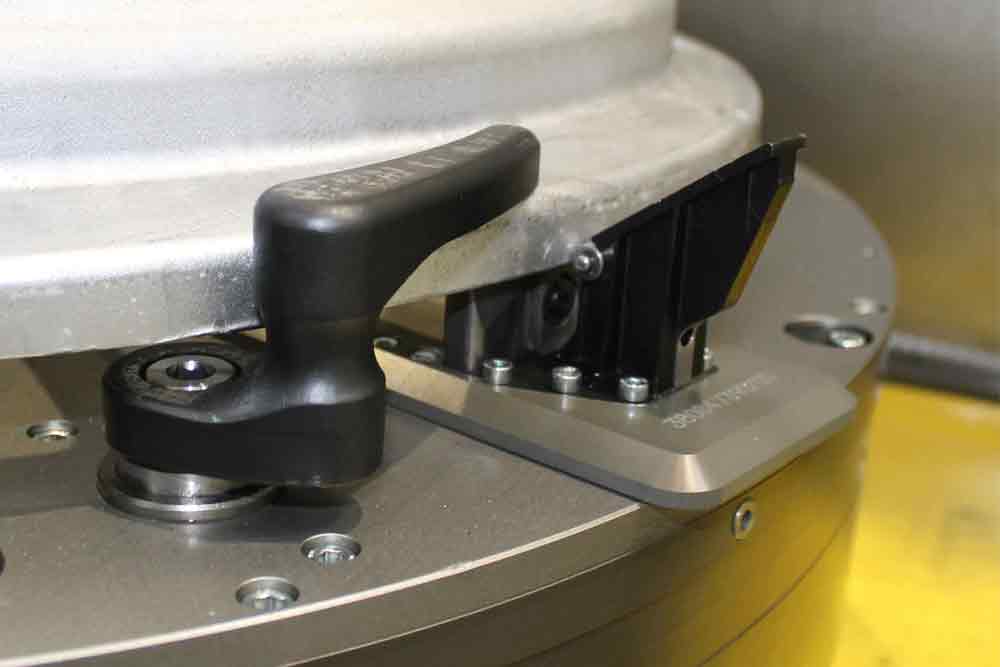

The UltimateClampingSystem matches the needs for random manufacturing of aluminum wheels during the 1st lathe operation. It allows machining of four different wheel sizes without retooling. Due to the loading ramps, the wheel sizes will automatically be detected and centered.

All common wheel designs fit onto the UCS‑4 and can be machined perfectly. Owing to the centrifugal force compensation, spindle speeds up to 2500 rpm can be performed with a permanently high and constant clamping force. All parts can easily be disassembled from top to bottom; this guarantees fast maintenance work.

Your advantages:

  • Random production of four different wheel diameters
  • Automatic wheel size detection during centering
  • High loading tolerance due to unified loading position
  • Clamping range between 15" and 24"
  • High chips contamination tolerance
  • Long maintenance intervals (radial sealings)
