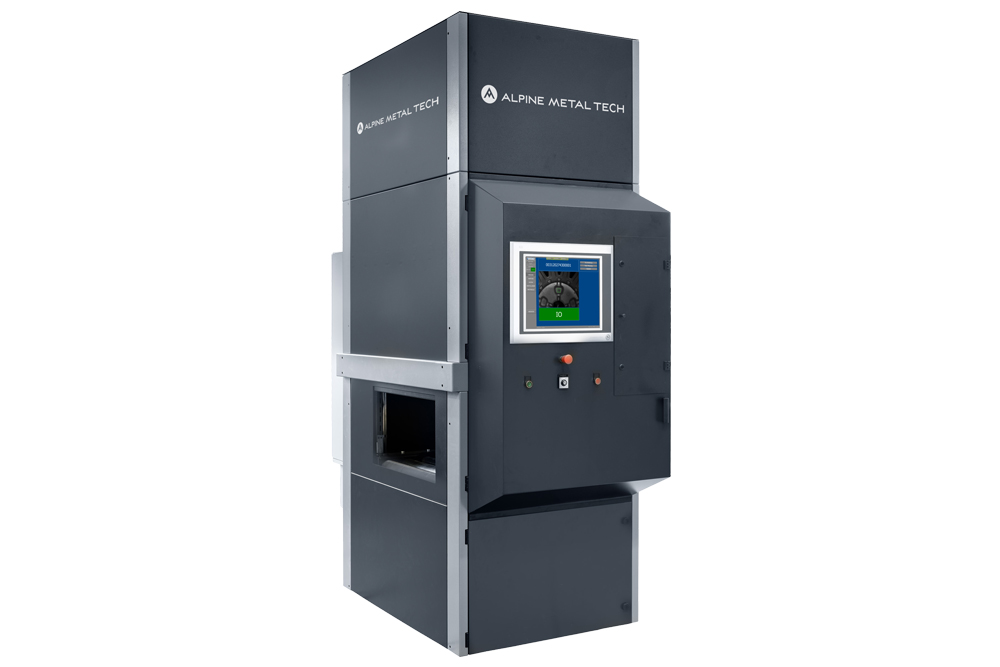

MARK400 - DMC laser marking

Constantly increasing requirements in the automotive industry for the tracking of all work steps carried out make a separate serial number for each component necessary.

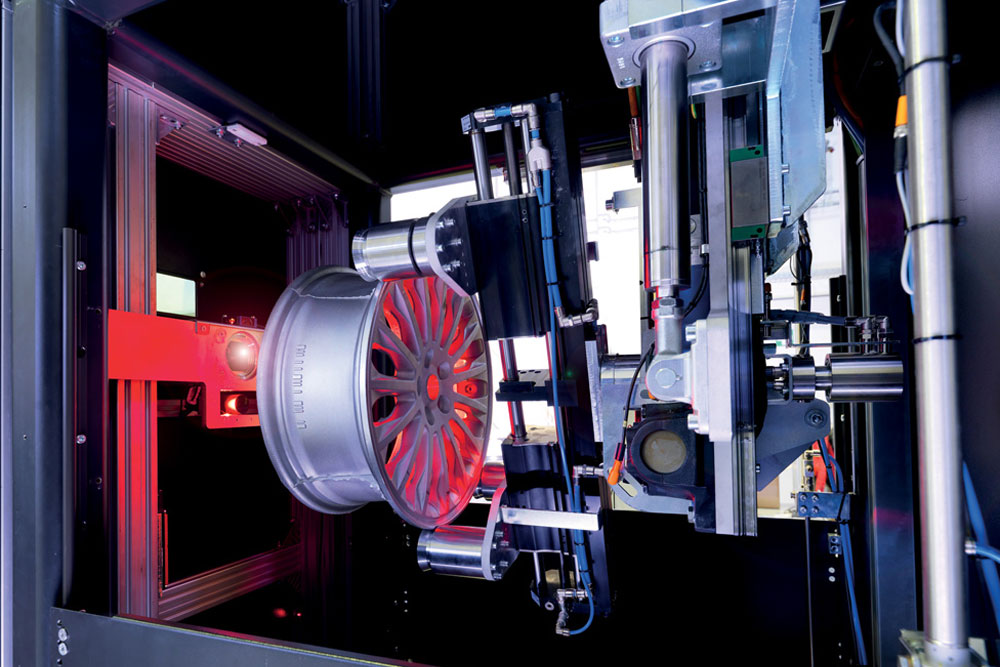

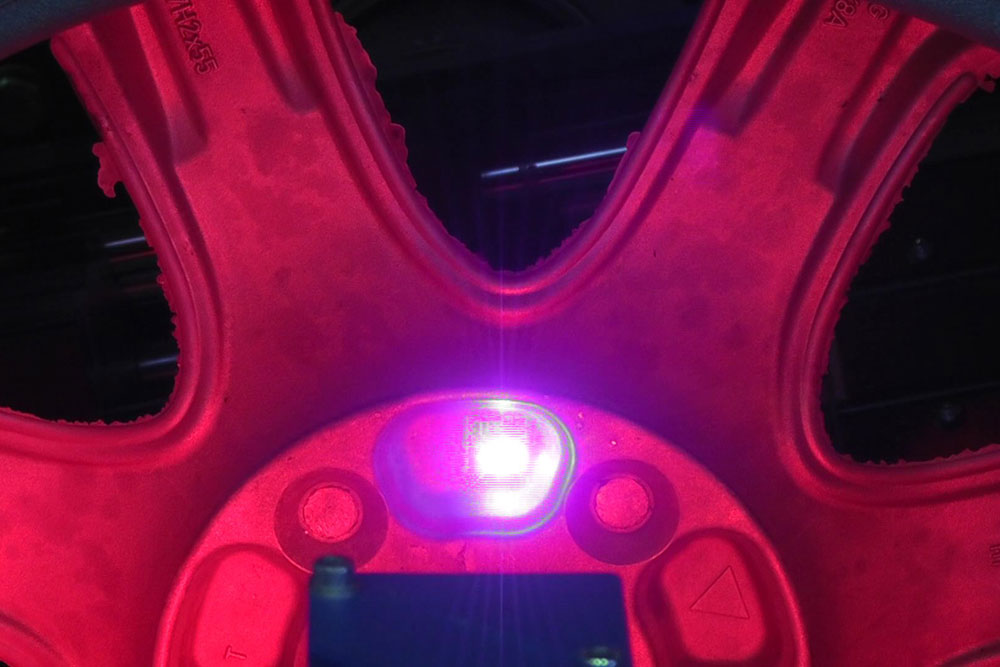

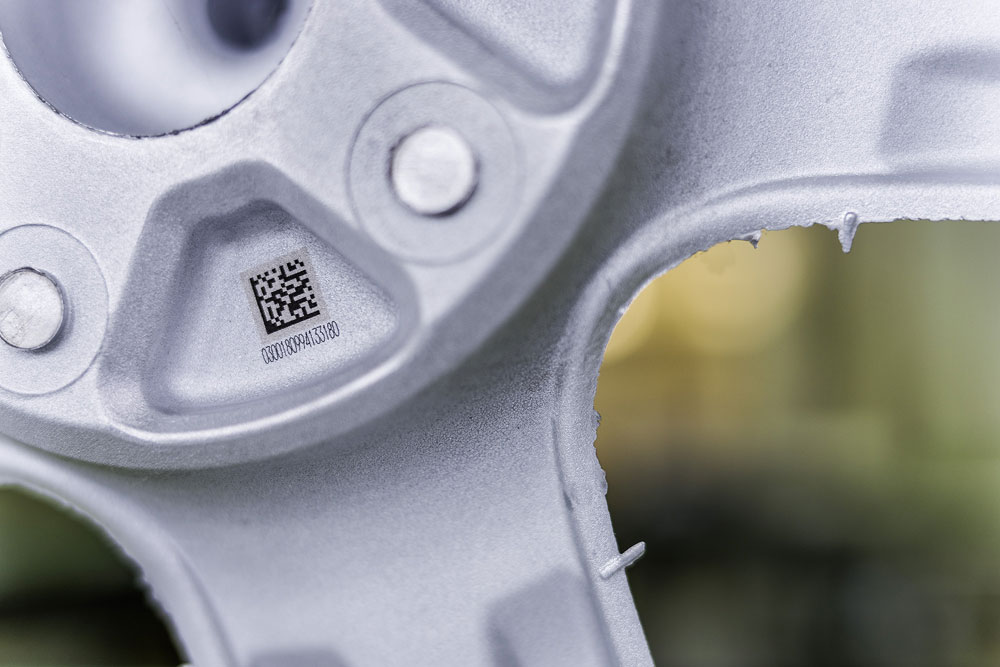

With the MARK400, unfinished cast wheels are marked fully automatically with a serial number shortly after the casting process. In addition to plain text, the laser technology used also enables Data Matrix Codes for automatic process tracking and control system of all subsequent production steps in wheel manufacturing. The attachment face with the lightening pockets has become the preferred marking position, since these surfaces are available immediately after the casting process and are neither further processed nor painted afterward. The basic concept of the MARK400 was specially designed for retrofitting in existing wheelworks. This is shown, for example, by its very small installation dimensions and flexibility in terms of connection to existing systems. With the experience from other applications, the MARK400 has been equipped with special features right from the onset, e.g. fine positioning using a camera system and a scanner system for checking and confirming the code that has just been marked. Thus the MARK400 offers a maximum of process safety and reliability. In order to have the entire process chain come from a single source, the CAM220 Data Matrix Code reading system is an ideal camera system from Alpine Metal Tech that was specially optimized for aluminum wheels. In addition, the CAM220 is equipped with additional features such as database connection and automatic intermediate buffering in the event of a network failure, making it ideally suited for implementing a highly accessible and future-proof solution.

Your advantages:

  • Genuine serial number: Each wheel has a unique number. Continuous tracking from the casting machine up to delivery is guaranteed.
  • Improvement in the production process: Production errors can be narrowed down to each individual wheel and precise production times.
  • Complete system from one single source: Marking machine and reading systems come from one supplier.
  • High level of reliability: Immediate check of the encoding directly after marking to ensure automatic readability.
