New AZN multi-axial wheel testing machine ready for delivery
19.09.2023

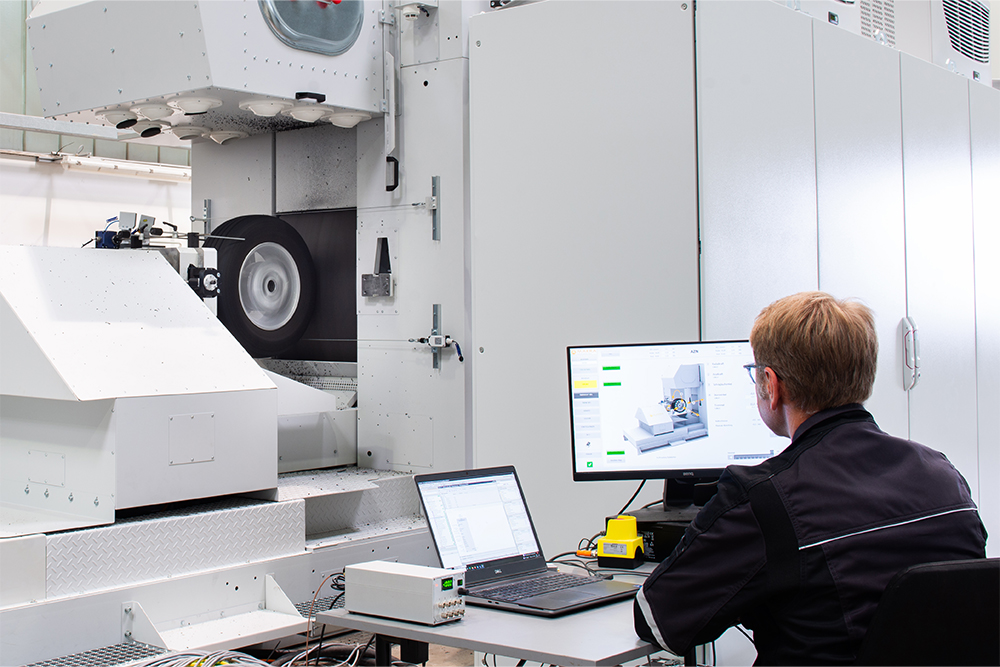

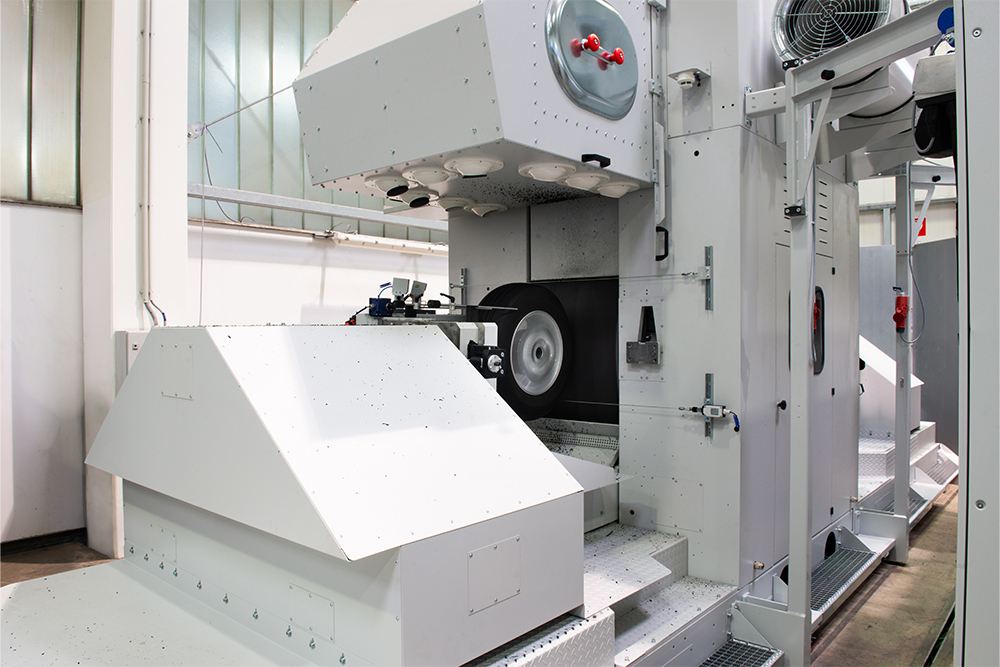

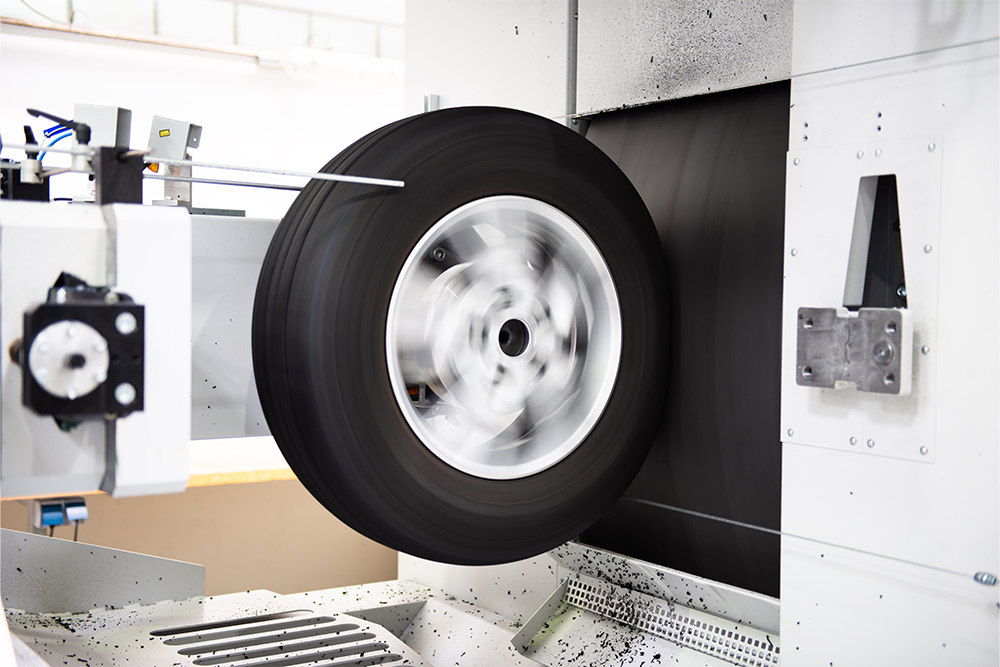

The AZN machine performs fatigue and endurance tests on aluminum car and light truck wheels by rolling them on a coated load drum. With a standard tire resting on the load roller, radial, tangential and lateral load forces can be simulated.
Many different protective devices are used and monitored during the test: travel distance, bulge and burst, inner rim flange, deflection depth of the tire, limit values of force and angle. Motion control systems record and control the loading forces. The AZN machine can optionally be supplied with two load stations, which doubles the testing capacity.
Further advantages of the AZN wheel testing machines:
- Forces are measured in all directions using load cells
- Available as standard or dynamic machine
- Testing according different OEM and SAE specifications
The AZN video and product folder can be found HERE.
